Description

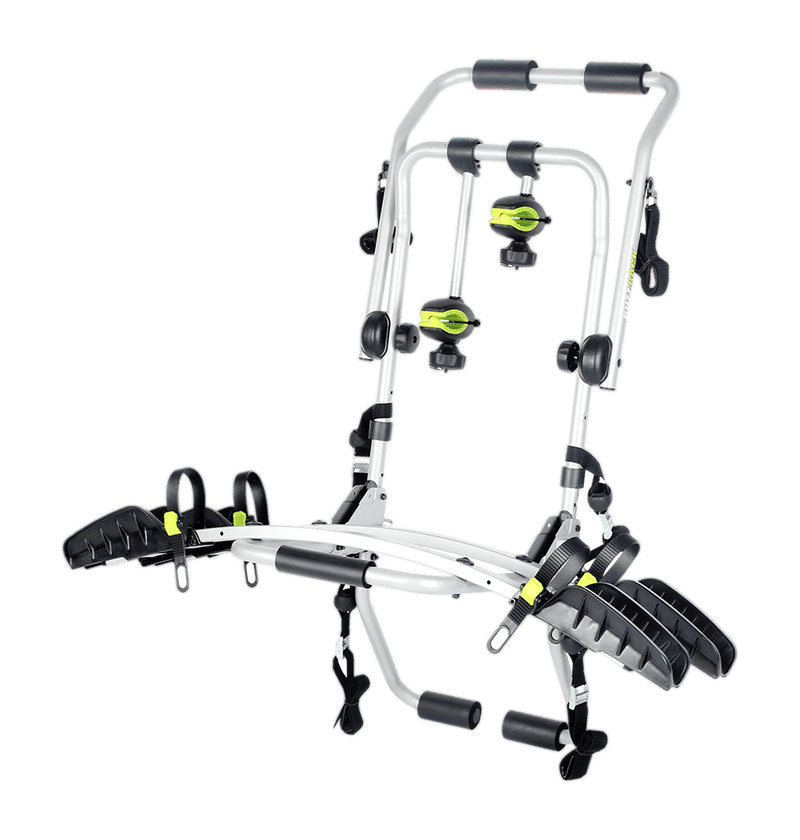

The PILOT is a platform style trunk rack that fits most cars without the need of a towing system. Safely fits 2 bikes without having them moving or touching each other which prevents scratches to the bikes.
FRAME
The geometry of the PILOT frame allows a quick and easy installation on most cars. Solidly built of steel and high impact resistant plastic materials. The geometry keeps the bikes away from the car.
QUICK INSTALLATION
Using the plastic hubs, you can adjust, fold or unfold the rack in no time.
LOCKING CLAMPS
The clamps are big enough to fit most bike frames. Made of reinforced Nylon, the clamps are highly resistant. An integrated pad prevents scratching the bike paint and allow most brakes cables to go through. Each clamp is equipped with a locking knob.
WHEEL SUPPORTS
The wheel holders will accommodate all wheelbases, even very small children's bikes. The straps allow a secure attachment of the wheels and the pads protect the rims. The straps are long enough to hold the biggest rims.
SAFETY
The product is supplied with an additional safety strap that allows to secure the bike.
HOOKS
All the hooks have a protective coating that prevent them from damaging the car paint.
SIZE
When bikes aren't loaded, you can easily fold the platform which might be convenient for parking.
The carrier cannot be mounted to cars that have a plastic spoiler.
Do not use on motorised rear door
NOT TO BE USED ON MOTORHOMES, CARAVANS, OR TRAILERS
Specifications
| Bike ebike suitable: | Yes suitable for eBikes as long as bike is within carriers max bike weight. |
| Bike Rack Bike Attachment: | Frame Hold |
| Bike Rack Bike Wheel Base: | Adjustable wheel holders. MIN: 53 cm / MAX: 119 cm |
| Bike Rack Carbon frame compatible: | YES (Do not over-tighten frame clamp) |
| Bike Rack dimensions: | 902 x 584 x 975 |
| Bike Rack distance between Bikes: | 180mm |
| Bike Rack Fits Vehicles with Exterior Tyre: | No |
| Bike Rack Folded dimensions: | 902 x 584x 230 |
| Bike Rack Lights & Number Plate holder: | YES with optional Light board, sold separately |
| Bike Rack Lockable: | YES Locks included |
| Bike Rack Maximum Total weight: | 30 kg |
| Bike Rack Maximum Tyre Width: | N/A |
| Bike Rack Maximum Weight per bike: | 15 kg |
| Bike Rack Number of Bikes: | 2 Bikes |
| Bike Rack Off-road Load limit: | No |
| Bike Rack Vehicle Attachment: | REAR DOOR/BOOT |
| Bike Rack Weight: | 9.0 kg |
| Colour: | Black |
| Manufacturer SKU: | BR-PILOT-2 |
| Product Type: | BIKE RACK - DOOR MOUNT |
| Sport / Activity: | Biking |
| Suitable for use on Trailers or Caravans: | No |
| Weight: | 12.000000 |
| Summary: | The PILOT is a platform style trunk rack that fits most cars without the need of a towing system. |
